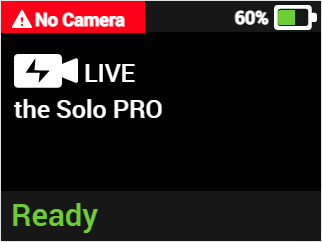

After powering on the Solo PRO, the Home screen is displayed.
Note
The camera can be connected to the Solo PRO before or after powering on the unit. When connected, the video feed is automatically detected by the unit and is displayed in the preview screen.
-
Alert: The cause of the alert is displayed next to
-

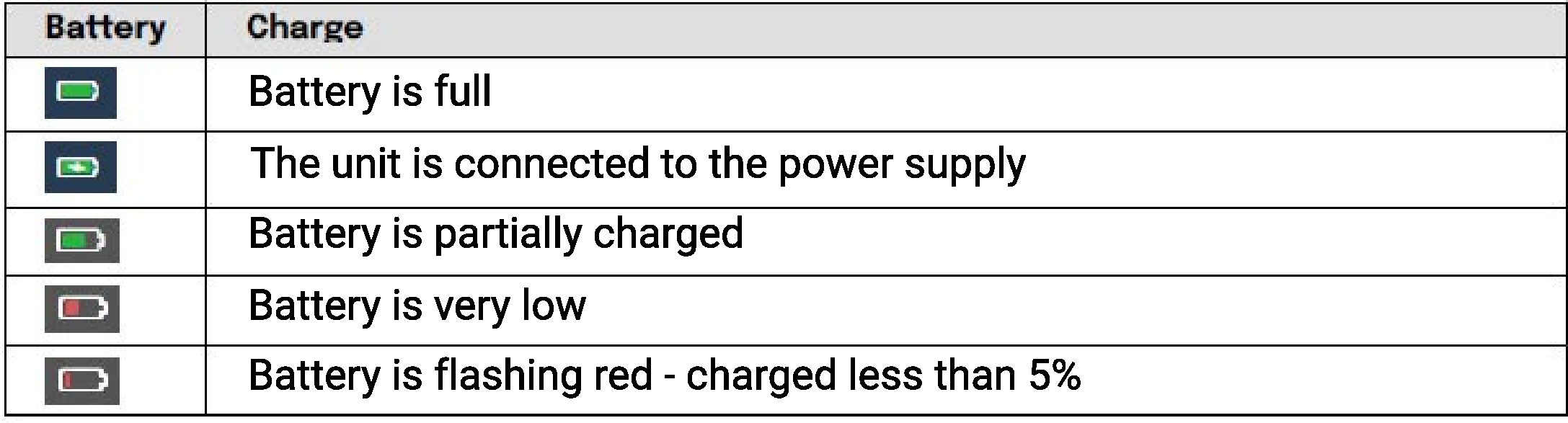

Battery status:
-
Bottom status bar: Indicates the status of the unit, as follows:
-
Offline: The unit is not connected to the network or is in the process of connecting to a network.
-
Ready: The unit is connected to the network and ready to stream.
-
-

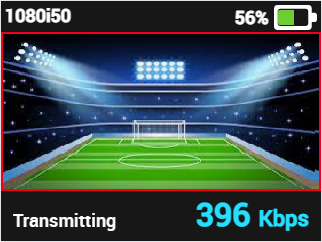

Streaming: The screen displays the following information:
-
Resolution and battery status
-
Video preview
-
Transmission rate
-
To use the Solo PRO interface:
-
In the Home screen, press the JOG.

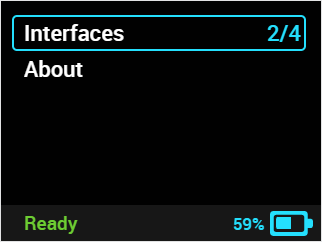

The Solo PRO main menu is displayed. Battery status is displayed at the bottom of the screen.
-

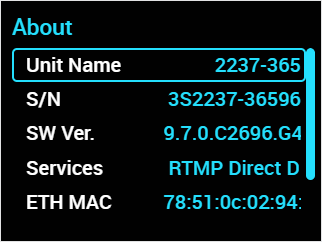

Turn the JOG clockwise to select About and then press the JOG.
The About screen displays information about the unit.
-
Do any of the following: .
-
Turn the JOG clockwise to move the selection bar down the screen, highlighting each item.
-
Turn the JOG anti-clockwise to move the selection bar up the screen or press Back
to return to the main menu.
-
-

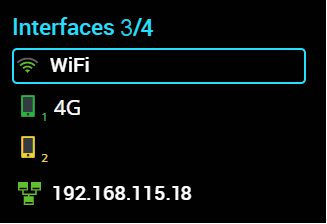

Turn the JOG anti-clockwise to select Interfaces.
-
Press the JOG to display the Interfaces screen.
